The dashboard provides a brief summary of the protection status of the entire network.
This section displays the computers that require the administrator’s attention:
Computers that have not connected to the server in the last 72 hours, 7 days and 30 days.
Computers with outdated protection: the engine, the signature file and those that need a restart to apply an update to the engine of the downloaded protection.
Click the various items in the panel to display the Protected tab in the Computers window, which is explained below.

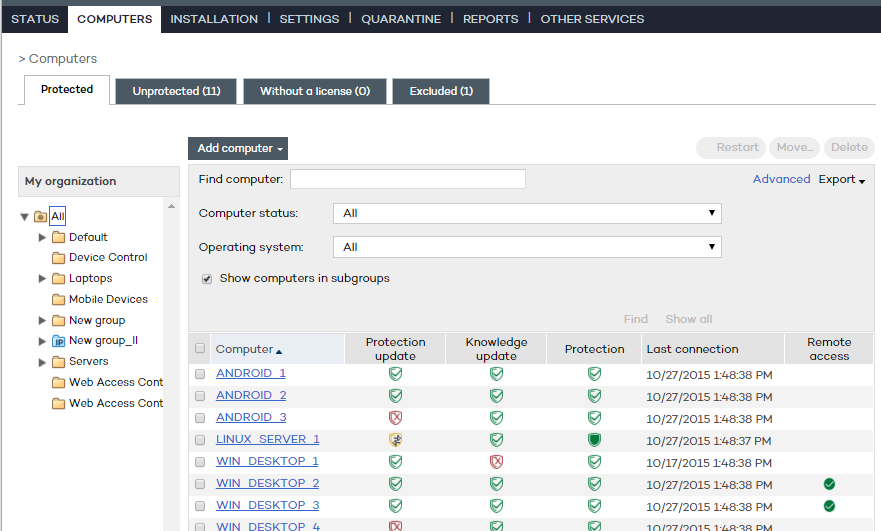

The following items are displayed in the Computers window to improve monitoring of the IT resources and enable searches for devices:
The group tree
Status tabs
Search tools
A window with details of the computer or device
The group tree on the left-hand side of the window lets you move through the different group levels and see the computers included in each group. Click All to obtain the list of all network computers.
There are four groups each reflecting the protection status of the computers:
Protected
Unprotected
Without a license
Excluded
Computers with the Adaptive Defense 360 agent correctly installed and with a valid license assigned, although they could have outdated protection or an error in the protection.
This includes cases where the agent is in the process of installation or removal, the protection has been uninstalled, as well as computers that have been discovered with the discovery tool.
These are computers that had a valid license assigned in the past but the corresponding license contract has expired and consequently they are unprotected. This also includes computers that belong to a group with restrictions on the maximum number of licenses or on the expiry date and the computer has not met these conditions.
These are computers with an Adaptive Defense 360 agent installed but that don’t compete for a valid license. Administrators can manually exclude computers when the number of valid licenses contracted is lower than the number of computers on the network to protect.
The list of computers can be filtered using various criteria depending on the selected tab.
In some tabs, moreover, there is an Advanced button. Click this to show or hide other search criteria. There is also a Show all button, which overrides any filters and displays all computers in the selected tab.
Once the search criteria is established, a list is displayed with the computers that meet the criteria.
This list is displayed as a table with a series of columns, which will vary depending on the tab describing the status of the computer.
